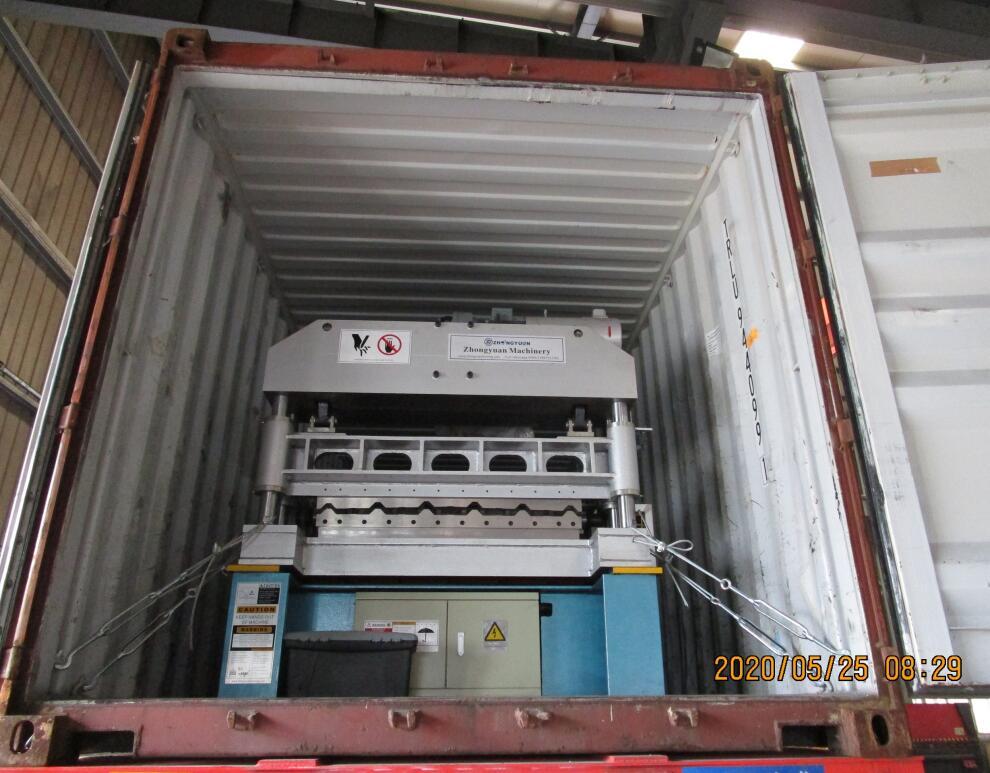

Metra roll forming machine delivery to Nigeria on May 25,2020

Suitable material

Q235 Aluminium coils;0.3-0.6mm

Forming speed

About 30m/min

Power Requirement

Main motor power: 7.5 Kw(Depend on final design)

Hydraulic station power: 2.2Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel with heat treatment.

Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 8500KGS

Machine’s size

About8.5m×1.8m× 1.6m (Depend on final design)

Shipping

1x40GP container can load one machine
